Wacom Cintiq Pro 32" Pen Display - DTH3220K0

  • $ 3,599.95


Wacom Cintiq Pro 32" Pen Display

MFR# DTH3220K0

Free Ground Shipping in the Continental USA

Product Description

  • Create directly on screen with our most natural pen experience
  • The Wacom Cintiq Pro 32 and 24 are advanced creative pen displays. Combined with Wacom Pro Pen 2, they offer an experience designed to enhance every creative breakthrough
  • A display that looks " and feels " totally natural
  • The etched glass screen provides a distinct, tactile experience as you draw, mimicking the feel of a pen on paper while reducing unwanted glare and reflections.
  • The display offers realistic color accuracy of up to 99% Adobe RGB, plus, at 4K resolution, you can see every detail of your creation in pinpoint accuracy.
  • Wacom Pro Pen 2: natural and precise
  • Our state-of-the-art creative pen technology. 8,192 levels of pressure sensitivity and unparalleled tilt recognition means that every stroke, every move of your hand is followed with unerring accuracy

Major Features:

  • Includes Wacom Pro Pen 2
  • Premium 4K screens, complete with world class color performance of up to 99% Adobe RGB.
  • Multi-touch gestures, the on-screen keypad, radial menus and the ExpressKey Remote offer a more intuitive experience.

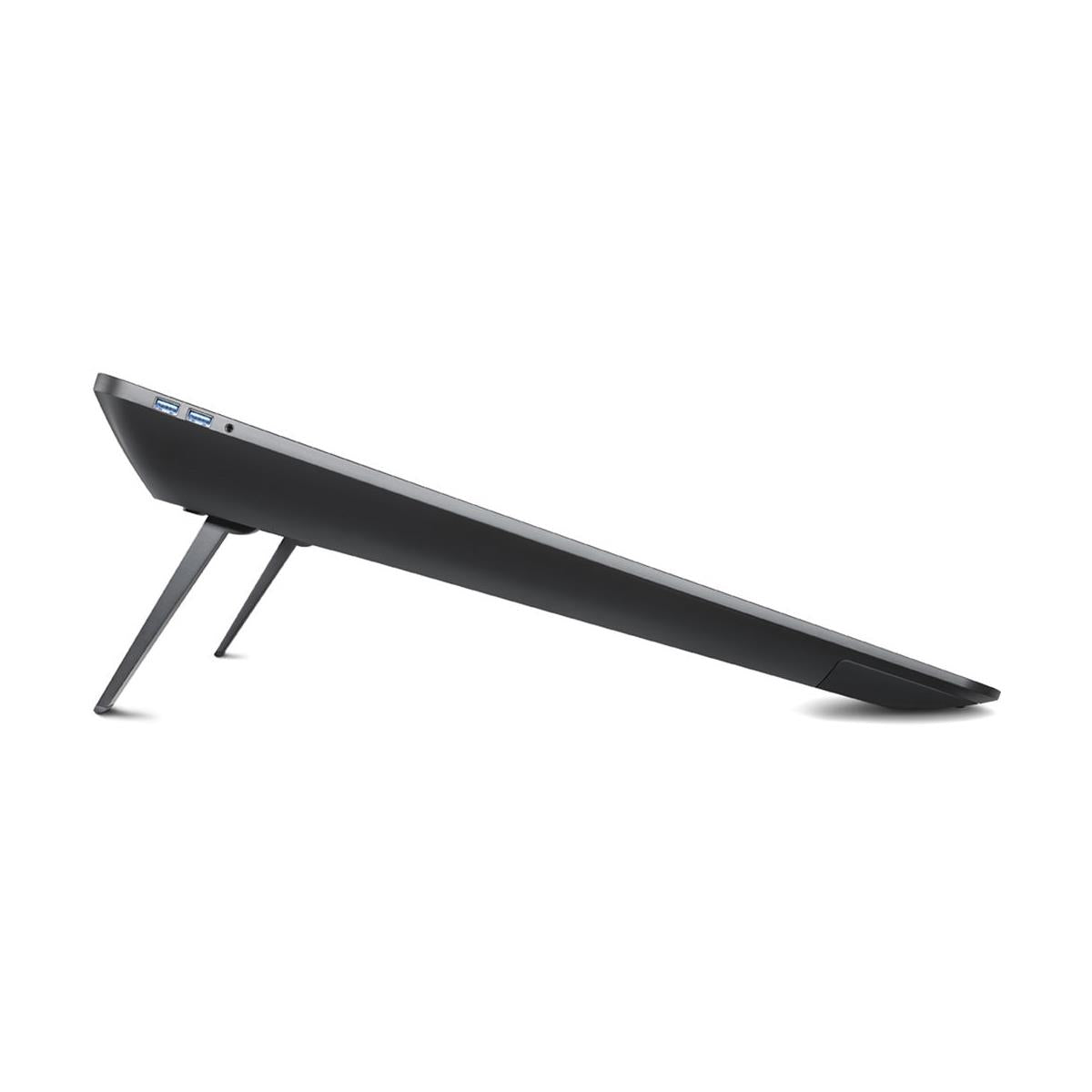

  • Built-in legs raise your Wacom Cintiq Pro from 5 to 20.
  • The optional Wacom Ergo Stand lets you raise, tilt and rotate your Cintiq Pro to find the most natural position for you.
  • Compatible with Mac and Windows.

Wacom Cintiq Pro 32" Pen Display DTH3220K0 includes:

  • Wacom Cintiq Pro 32 Pen & Touch display
  • Wacom Pro Pen 2 with 4-color pen ring set
  • ExpressKey Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)
  • Pen stand with 10 replacement nibs (6 standard
  • 4 felt) and nib removal tool

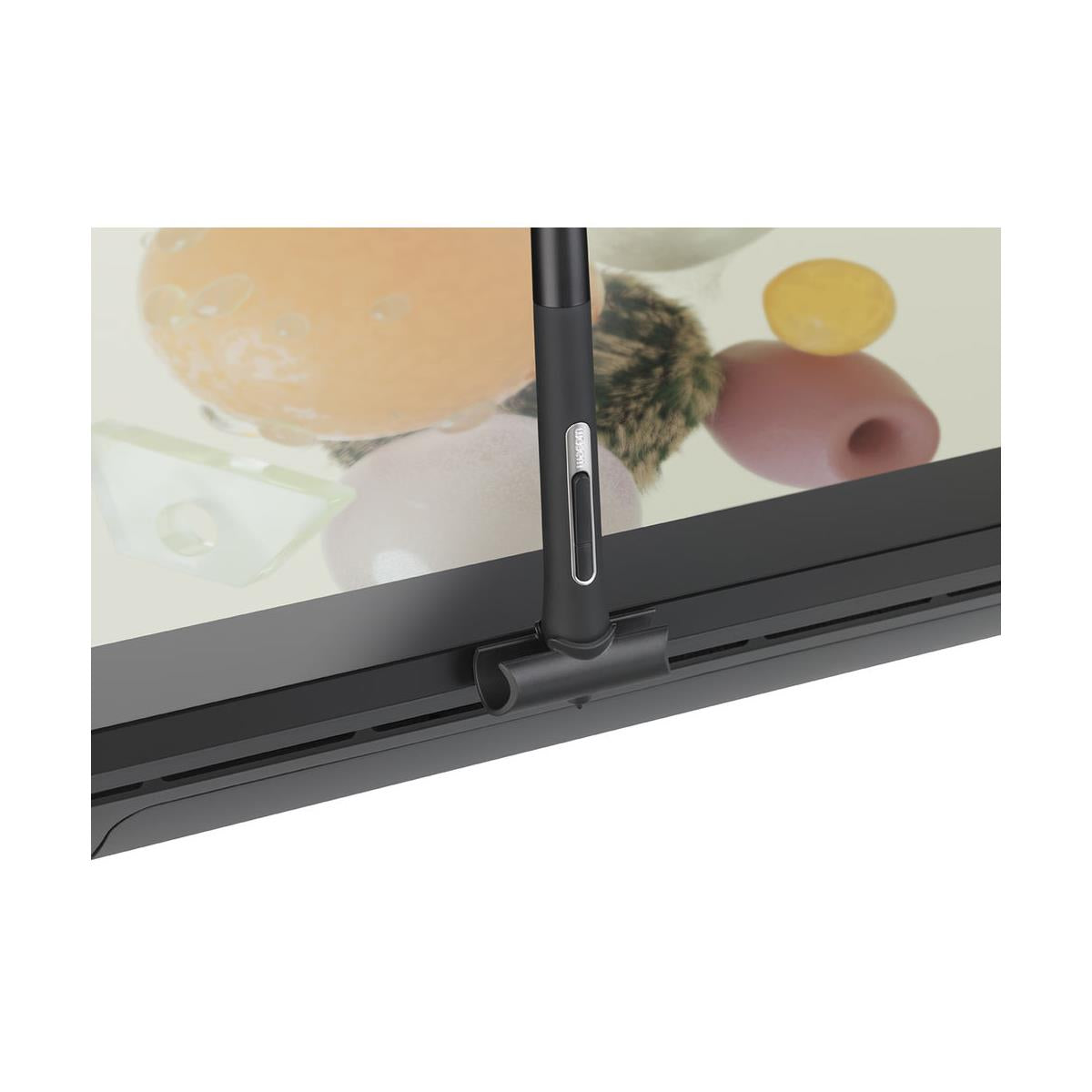

  • Pen holder
  • 180W AC adaptor
  • 1.8m power cable
  • 1.8m USB-C to USB-C cable
  • 3m DisplayPort to DisplayPort cable
  • 3m HDMI2.0 to HDMI2.0 cable
  • 3m standard USB-A to USB-A cable
  • DisplayPort to Mini DisplayPort adapter
  • Quick Start Guide
  • Warranty card (WCL, WCN Only)
  • Regulation sheet
  • Cleaning cloth

 Specifications:

  • Product Type: Creative Pen Display 32
  • Model number: DTH3220 creative pen display touch
  • Size: 854 x 506 x 53.25 mm (33.62 x 19.92 x 2.1 in)
  • Weight: 13 kg (28.66 lbs) without optional stand
  • Screen Size: (Measured Diagonally)80 cm / 31.5 in
  • Technology: IPS UHD high brightness panel
  • Displayable Colors (maximum)1.07 billion colors (10 bits color)
  • Aspect Ratio: 16:9
  • Viewing Angle: Range Up to 64° from vertical (26° from horizontal, up to 90°)
  • Contrast Ratio: 750:1 (min) / 1000:1 (Typ)
  • Brightness: 310cd/m2 (min, duty 100%)
  • Response Rate8 ms
  • Active Area: 697 X 392 mm (27.44 X 15.43 in)
  • Color Gamut: 98% Adobe RGB
  • Industry Standard Pre-sets: 6500° K whitepoint default
  • Graphics Input: USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution).
  • Multi-Touch: Yes
  • Pen: Wacom Pro Pen 2
  • Pressure Levels: 8192, both pen tip and eraser
  • Tilt Range: 60 degrees
  • Tilt Recognition: ±60 levels
  • Type: Pressure-sensitive, cordless, battery-free
  • Switches: Tip switch, 2 side switches, eraser
  • Nibs: 10 (6 standard, 4 felt) in pen stand
  • Pen Box/ Holder: Yes - Pen Holder
  • Pen Stand: Yes
  • Grip: Latex-free silicone rubber
  • Technology: Patented electromagnetic resonance method
  • Resolution: 5080 lpi
  • ExpressKeys™17 customizable, application-specific on included ExpressKey™ Remote
  • Touch Ring: Yes - on included ExpressKey Remote
  • Touch Strips: No
  • Rocker Ring And Home Button: Yes - on included ExpressKey Remote
  • Radial Menu: Yes
  • Precision Mode: Yes
  • Display Toggle: Yes
  • Dedicated Pan, Scroll, Zoom, Brush Size: Yes
  • ExpressKey™ Remote Dimensions: 135 x 52 x 10 mm (5.3 x 2.0 x 0.4 inch)
  • ExpressKey™ Remote Continuous Operation: Up to 160 hours, if a key is pressed every 30 seconds
  • ExpressKey™ Remote Charge Time: Up to 2 hours
  • Stand Adjustability: Integrated pop-out legs for 20° angle (5° angle without legs)
  • Stand Orientation: Right or left-handed use
  • Cables Included: USB to USB cable (3m), DisplayPort to DisplayPort cable (3m), HDMI 2.0 to HDMI2.0 cable (3m),USB-C to USB-C cable (1.8m), DisplayPort to Mini DisplayPort adapter, microUSB to USB cable (30 cm; for ExpressKey Remote), Power Cables (1.8m).
  • PC and Mac Connection: USB-C supporting DisplayPort Alternate Mode (DPAM), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port
  • Ports included: 4 x USB3 ports*
    1 x USB C port
    1 x HDMI2.0 port
    1 x DP port
    2 USB-A Ports (one for ExpressKey Remote dongle)

    *When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.

  • Audio: Audio headset jack, built-in microphone
  • Power Supply Input: 100 to 240 VAC, 50/60Hz
  • Power Supply Output: 19.5V / 9.23A
  • Power Consumption: Power ON mode (Max.): 129 W
    Power sleep mode: 0.5 W or lower (Disconnect USB A or USB C cable)
    Power OFF mode: 0.5 W or lower
  • Battery: Rechargable Li-ion battery on included ExpressKey Remote
  • Security: Kensington® Lock Port (lock purchased separately)
  • System Requirements: PC: Windows® 7 or later (latest service pack/build), Mac: OS X 10.11 or later (latest update),
    USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download.
  • What's Included:
    • Wacom Cintiq Pro 32 touch Wacom
    • Pro Pen 2 with 4-color pen ring set
    • ExpressKey™ Remote (with USB-A RF dongle and 30cm micro-USB to USB charger cable)
    • Pen stand with 10 replacement nibs (6 standard, 4 felt) and nib removal tool
    • Pen holder,
    • 180W AC adaptor and 1.8m power cable
    • 1.8m USB-C to USB-C cable,
    • Quick Start Guide
    • Regulation sheet
    • Cleaning cloth
  • Certifications: VCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
  • Additional Accessories:
    • Wacom Ergo Stand
    • Wacom Cintiq Pro Engine
    • Wacom Color Manager
    • Wacom Pro Pen 3D
    • Wacom Keyboard, Replacement Wacom nibs (standard and flex) for Wacom Pro Pen 2
    • Additional previous generation pens (Classic, Airbrush, Art, Pro Pen)
    • Replacement ExpressKey Remote
    • Replacement Wacom Pro Pen 2
    • Flex Arm
    • VESA Mount
  • Limited Warranty: 1 year in USA, Canada, Latin America
